Description

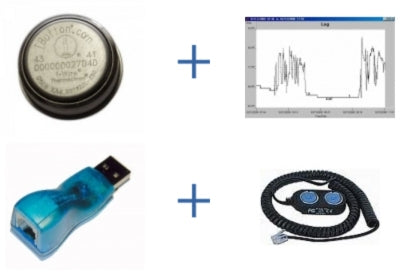

This Starter Kit for the Hygrochron iButton® Temperature and Humidity Data Logger consists of:
DS1923 Hygrochron Logger (-40 to +85°C)
USB Interface and 1-wire iButton Receptor cable, Wallmount, Adhesive Mounting Pad and Key Fob mount.
A simple configuration and recording package for Windows® is also supplied. Everything you need for a simple logging application.
NOTE: PC not included.
Features
The logging software allows you to:
- set alarm levels
- configure recording at intervals of every second or greater
- start logging straight away, after a delay or on a temperature alarm condition
- Display a histogram of the recorded data plus allow export to Spreadsheets.
- for Windows® OS only (see datasheet under the Technical Tab for more information)
Hygrochron Logger can:
- Monitor temperatures between -20 and +85°C
- Monitor humidity from 0 to 100% RH
- Store up to 8000 measurements
- Water resistant
- Only 17.35mm diameter and 5.9mm thick
- Meets UL 913, 5th Ed., Rev. 1997-02-24; Intrinsically Safe Apparatus, Approved under Entity Concept for use in Class I, Division 1, Group A, B, C, and D Locations
