Description
The TouchPAD TPD 4.3" Series (TouchPad TPD-430/TPD-433), is a series of tiny touch screen HMI displays designed for building and home automation. The TPD-430/TPD-433 is equipped with a high resolution TFT color touch screen and fits to a the EWB-T43 wallbox or OB120 Outlet box. It also has the capability to interface to a wide range of input/output devices to create smart, flexible user-defined displays.
Included with the display is the HMIWorks Ladder Designer which can be used to easily create the displays and logical control of any connected Input/output devices. For programmers, a C language toolkit is available.
Integration with Monitoring Systems and I/O devices can be achieved using Modbus Protocol.

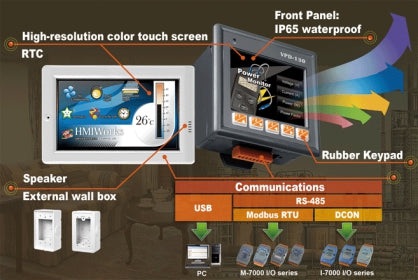

Features
- Modbus RTU and DCON protocol
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- RS-485 (including Self-Tuner)
- RTC (Real Time Clock)
- Speaker or buzzer
- Free HMIWorks development tool
- Supports C language and Lader Designer
- ESD Protection: 4 kV
- Operating temperature: -20 ~ 50°C
- Supports user-defined third party protocol (C language)
Specifications
| Models | TPD-430-H | TPD-430-H-EU | TPD-433-H | TPD-433-H-EU |
| CPU Module | ||||
| CPU | 32-bit RISC CPU | |||
| Memory Expansion | 16 MB SDRAM/16 MB Flash | |||
| Real Time Clock (RTC) | Yes | |||
| Buzzer | Yes | |||
| Rotary Switch (0~9) | Yes | |||
| Communication Interface | ||||
| Serial Port | RS-485 (including Self-Tuner) | |||
| Ethernet | - | Yes (RJ-45 x 1, 10/100 Base-TX) | ||
| USB 1.1 Client | Firmware updates only | |||
| MMI (Main Machine Interface) | ||||
| LCD | 4.3” TFT(Resolution 480 X 272 X 16), defective pixels <= 3 | |||
| Backlight Life | 20,000 hours | |||
| Brightness | 400 cd/m2 | |||
| Touch Panel | Yes | |||
| LED Indicator | Yes | |||
| Reset Button | Yes | |||
| Electrical | ||||
| Powered from Terminal Block | +12 ~ 48 VDC | |||
| Powered from PoE | - | IEEE 802.3af, Class1 (48 V) | ||
| Power Consumption | 2.5 W | |||
| Mechanical | ||||
| Dimensions (W x L x H) | 126 mm x 82 mm x 24 mm | 126 mm x 92 mm x 29 mm | 126 mm x 82 mm x 24 mm | 126 mm x 92 mm x 29 mm |
| Installation | Wall Mount (Suitable for the outlet box in United States) | Wall Mount (Suitable for the European 86mm x 86mm outlet box) | Wall Mount (Suitable for the outlet box in United States) | Wall Mount (Suitable for the European 86mm x 86mm outlet box) |
| Environmental | ||||
| Operating Temperature | -20 ~ +50°C | |||
| Storage Temperature | -30 ~ +80 °C | |||
| Ambient Relative Humidity | 10 ~ 90% RH, non-condensing | |||
Technical
TPD-430 / TPD-433 TouchPad Datasheet
