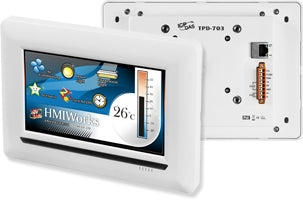

TPD-703-64 7" Touch Screen HMI Display (64Mb)

The TPD 7 inch series is a series of Touchscreen HMI's designed for building and home automation with high resolution TFT color touch screen.

The TPD-703 has 16 MB SDRAM and 16 MB Flash memory, while the TPD-703-64 expands its memory to 64 MB SDRAM and 64 MB Flash.  They also offer 1 RS-232 port, 1 RS-485 port, Power over Ethernet (PoE) and real time clock (RTC).

It can be seamlessly integrated with all kinds of I/O modules and can present beautiful, flexible and user-defined picture frame. TPD-703/703-64 offers a way to upgrade mechanical switches into intelligent control pads.

For PLC users, HMIWorks provides a Ladder Designer, while for Programmers, C language environment is also provided. Using the ladder designer enables application programs to be written quickly for the TPD Displays.

• Excellent C/P ratio (cost/performance)
• High-resolution color touch screen
• PoE (Power over Ethernet)
• RTC (Real Time Clock)
• Free HMIWorks development tool
• Supports C programming language and Ladder Designer
• Supports the custom communication protocol (C language)
• Modbus TCP/RTU protocol
