Description

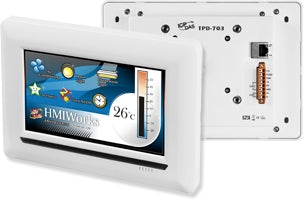

The TPD 7 inch series is a series of Touchscreen HMI's designed for building and home automation with high resolution TFT color touch screen.
The TPD-703 has 16 MB SDRAM and 16 MB Flash memory, while the TPD-703-64 expands its memory to 64 MB SDRAM and 64 MB Flash. They also offer 1 RS-232 port, 1 RS-485 port, Power over Ethernet (PoE) and real time clock (RTC).
It can be seamlessly integrated with all kinds of I/O modules and can present beautiful, flexible and user-defined picture frame. TPD-703/703-64 offers a way to upgrade mechanical switches into intelligent control pads.
For PLC users, HMIWorks provides a Ladder Designer, while for Programmers, C language environment is also provided. Using the ladder designer enables application programs to be written quickly for the TPD Displays.
Features
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- PoE (Power over Ethernet)
- RTC (Real Time Clock)
- Free HMIWorks development tool
- Supports C programming language and Ladder Designer
- Supports the custom communication protocol (C language)
- Modbus TCP/RTU protocol
Specifications
| Models |
TPD-703
|
TPD-703-64
|
|
| CPU Module | |||
| CPU |
32-bit RISC CPU
|
||
| Memory Expansion |
16 MB SDRAM/16 MB Flash
|
64 MB SDRAM/64 MB Flash
|
|
| Real Time Clock (RTC) |
Yes
|
||
| Buzzer |
Yes
|
||
| Rotary Switch (0~9) |
Yes
|
||
| Communication Interface | |||
| Serial Port | COM1 |
RS-485 (including Self-Tuner) ; Non-isolation
|
|
| COM2 |
RS-232 (3-pin) ; Non-isolation
|
||
| Ethernet |
RJ-45 x 1, 10/100 Base-TX
|
||
| MMI (Main Machine Interface) | |||
| LCD |
7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3
|
||
| Backlight Life |
20,000 hours
|
||
| Brightness |
250 cd/m2
|
400 cd/m2
|
|
| Touch Panel |
4-wire, analog resistive; Light Transmission: 80%
|
||
| Reset Button |
Yes
|
||
| Electrical | |||
| Powered from Terminal Block |
+12 ~ 48 VDC
|
||
| Powered from PoE |
IEEE 802.3af, Class1 (48 V)
|
||
| Power Consumption |
3.6 W
|
||
| Mechanical | |||
| Dimensions (W x L x H) |
217 mm x 153 mm x 33 mm
|
||
| Installation |
Wall Mount
|
||
| Ingress Protection |
Front Panel: IP40
|
||
| Environmental | |||
| Operating Temperature |
-10 ~ +60°C
|
||
| Storage Temperature |
-20 ~ +70°C
|
||
| Ambient Relative Humidity |
10 ~ 90% RH, non-condensing
|
||
