Description
The USB-1808 Series data acquisition (DAQ) devices provide 18-bit high-resolution, simultaneous analog inputs along with digital I/O and counter measurements. They feature synchronous I/O which provides the ability to read analog, digital, and counter inputs, and generate analog and digital outputs at the same time.
OEM version for embedded applications.

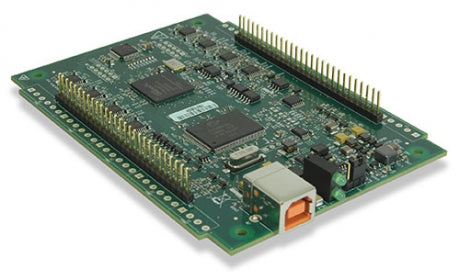

The USB-1808X-OEM provides 200 kS/s per channel simultaneous-sampling with two analog outputs, four digital I/O lines, two 32-bit counter inputs, two quadrature encoder inputs, and two timer outputs.
Features
- 8 High Precision Analog Inputs (18-Bit)
- High Speed Acquisition
- Simultaneous Sampling and Synchronised Outputs
- 2 Analog Outputs (16-bit)
- Built-in Encoders
- 32-bit Counter Inputs
- 2 Timer Outputs
- 4 Digital I/O lines
- OEM Board version
Specifications
ANALOG INPUT | ||
CHANNELS | RESOLUTION | MAX SAMPLE RATE |
8 SE/8 DIFF | 18-bit | Up to 200 kS/s/ch |
SAMPLING | RANGES | ISOLATION |
Simultaneous | ±10 V, ±5 V, 0-10 V, 0-5 V | — |
ANALOG OUTPUT | ||
CHANNELS | RESOLUTION | SPEED |
2 | 16-bit | Up to 500 kS/s/ch |
RANGES | ||
Fixed +/- 10V | ||
DIGITAL I/O | ||
CHANNELS | COUNTER/TIMERS | ENCODER |
4 | 2/2 | 2 |
SOFTWARE | POWER | |
OS SUPPORT | DRIVERS | POWER |
Windows® and Linux® |
Universal Library™ SW Suite, DASYLab support |
Bus powered |
