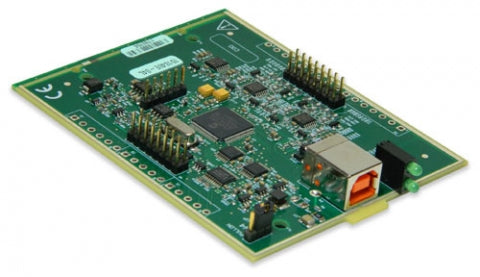

USB-201-OEM 12-Bit, 100 kS/s OEM

Description

The USB-201-OEM board provides eight single-ended (SE) analog inputs, eight individually-configurable DIO channels, one event counter, and external pacer I/O. Everything you need to begin acquiring, viewing, and storing data is included with this board, including comprehensive software support.

Analog Input
The USB-201-OEM board provides eight 12-bit SE analog inputs and offers an analog input range of ±10 V.

Sampling Rate
When scanning continuously to computer memory (hardware-paced mode), this board has a 100 kS/s maximum aggregate sampling rate.

Channel Queue
The channel queue feature lets you configure a list of unique ascending channel configuration for each scan. The channel settings are stored in a channel queue list that is written to local memory on the device.

External Pacer I/O
The USB-201-OEM board provides one external clock input and one clock output for the analog input pacer. You can connect an external clock signal to the external clock input terminal. When using the internal clock, this board outputs the ADC sample clock.

Digital I/O
The USB-201-OEM board provides eight TTL-level digital I/O lines. Each digital channel is software-selectable for input or output. When configured for input, you can use the digital I/O terminals to detect the state of any TTL-level input.

Pull-Up/Pull-Down Configuration
The USB-201-OEM board has a user-configurable internal jumper to configure the digital bits for pull-up or pull-down (default).

Event Counter Input
The board supports one 32-bit TTL-level event counter that accepts inputs up to 1 MHz.

Features

 SE analog inputs

±10 V input range

12-bit resolution

100 kS/s sample rate

8 digital I/O

One 32-bit counter

16 pin dual-row 0.100” headers (2x8) for ribbon cable connectivity

Board only (no case, CD, or USB cable)

Cased Version Available

Software

Support for DAQami, easy-to-use advanced data logging application to acquire,
view, and log data

TracerDAQ® for acquiring and displaying data and generating signals

Universal Library includes support for Visual Studio® and Visual Studio® .NET,
including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET

Universal Library for Android™ includes support and examples for the Android 3.1
platform (API level 12) and later

DASYLab® and NI LabVIEW™ drivers

MATLAB® Data Acquisition Toolbox™ support

Linux® open-source drivers

InstaCal™ software utility for installing, configuration, and testing

Supported Operating Systems: Windows® 8/7/Vista®/XP, 32-bit or 64-bit;
Android 3.1 (API level 12) and later; Linux®
