Description

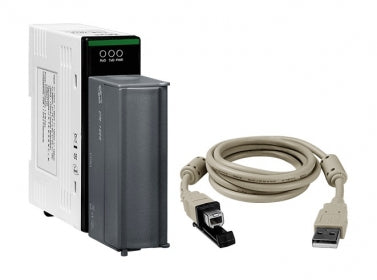

The USB-2019 provides easy USB plug-and-play operation and accurate measurement for all kinds of automation applications.
Compared with the traditional PC-based card like PCI, PC/104 and ISA cards, users can achieve data acquisition easier and quicker via USB-2019. The USB-2019 is an 8-channel universal analog input module and provides the following features.
- Provides over-voltage protection of up to 240 Vrms
- Voltage and current input types.
- Supports thermocouple devices with J, K, T, E, R, S, B, N, C, L, M and LDIN43710 types.
- Accurate thermocouple measurement and automatic cold-junction compensation for each channel.
- Open wire detection for thermocouple and 4 ~ 20 mA inputs for each channel.
Using the USB I/O utility, users can configure and test the USB-2019 directly and easily without any coding. The friendly API library is also provided for users to develop their own USB application.
Features
-
8 Differential Universal 16-bit Analog Input Channels
► Thermocouple
► Voltage
► Current - 240 Vrms Overvoltage Protection
- Thermocouple and 4~20mA current input provide Open Wire Detection
- Individual Channel Configuration
- USB 2.0 Full-Speed (12 Mbps)
- USB Bus Powered
- Lockable USB cable
- Driver Free
Specifications
| Software | |
|---|---|
| OS Support | Windows XP (32/64 bit), Windows 7 (32/64 bit) |
| CPU Module | |
|---|---|
| Watchdog Timer |
1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) |
4 kV contact for each terminal 8 kV air for random point |
| LED Indicators | |
|---|---|
| Status | 3 x Power and Communication |
| Analog Input | |
|---|---|
| Channels | 8 Differential |
| Type |
Voltage Current Thermocouple |
| Range |
Voltage: ±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (External resistor is required) Thermocouple: J, K, T, E, R, S, B, N, C, L, M and L(DIN43710) |
| Resolution | 16 bit |
| Accuracy | ±0.1% FSR |
| Sampling Rate | 10 Hz (Total) |
| Input Impedance |
Voltage: > 400 kΩ, Current: 125 Ω (An external resistor is required) |
| Common Mode Rejection | 86 dB Min. |
| Common Voltage Protection | 100 dB |
| Overvoltage Protection | 240 Vrms |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes (Software programmable) |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/℃ |
| USB | |
|---|---|
| Specification | USB 2.0 Full-Speed (12Mbps) |
| Power | |
|---|---|
| Consumption | 1.7 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) |
USB-2019: 33 x 107 x 118 (W x L x H) CN-1824: 30 x 84 x 43 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | |
