Description

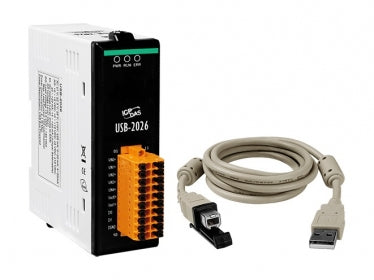

The USB-2026 is a USB powered multifunction module that offers 5 analog input channels, 2 analog output channels, 2 digital input channels and 2 digital output channels, in a small form factor.
The USB-2026 provides a programmable input range on all analog inputs (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA or 0 ~ +20 mA), analog outputs are 12-bit at +/-5 V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA and all digital outputs can be set as alarm output. Each analog input can be configured for an individual range and provide a high overvoltage protection of 240 Vrms.
Features
- Multifunction (5 AI, 2 AO, 2 DI and 2 DO)
- Overload and Short Circuit Protection for Digital Output
- 240 Vrms Overvoltage Protection for Voltage Input
- 4~20 mA current output provide Open Wire Detection
- Individual Channel Configuration
- USB Bus Powered
- Lockable USB cable
- Driver Free
Specifications
| CPU Module | |
|---|---|
| Watchdog Timer |
1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable) |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) |
4 kV contact for each terminal 8 kV air for random point |
| LED Indicators | |
|---|---|
| Status | 3 x Power and Communication |
| Analog Input | |
|---|---|
| Channels | 5 Differential |
| Type |
Voltage Current |
| Range |
Voltage: ±1 V, ±2.5 V, ±5 V, ±10 V Current: ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA |
| Resolution |
Normal Mode: 14-bit Fast Mode: 12-bit |
| Accuracy |
Normal Mode: ±0.1% FSR Fast Mode: ±0.5 % FSR |
| Sampling Rate |
Normal Mode: 10 Hz Fast Mode: 200 Hz |
| Input Impedance |
Voltage: 20 MΩ Current: 135 Ω |
| Overvoltage Protection |
Voltage: 120 VDC Current: N/A |
| Overcurrent Protection |
Voltage: N/A Current: Yes, 50 mA at 110 VDC |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/°C |
| Analog Output | |
|---|---|
| Channels | 2 |
| Range |
Voltage: +0 ~ +5 VDC, +0 ~ +10 VDC, ±5 VDC, ±10 VDC Current: +0 ~ +20 mA, +4 ~ +20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Open Wire Detection | Yes, for 4 ~ 20 mA only |
| Voltage Output Capability | 10 V @ 20 mA |
| Power-on Value | Yes |
| Safe Value | Yes |
| Digital Input/Counter | |
|---|---|
| Channels | 2 |
| Type | Dry Contact, Source |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Max. Counts | |
