Description

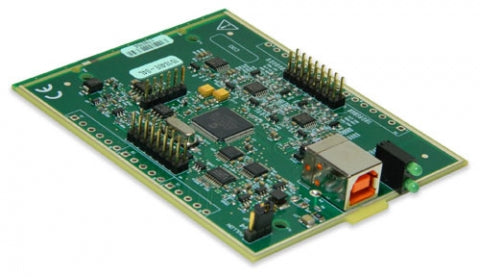

The USB-204-OEM board provides eight single-ended (SE) analog inputs, eight individually-configurable DIO channels, one event counter, and external pacer I/O. Everything you need to begin acquiring, viewing, and storing data is included with this board, including comprehensive software support.
Analog Input
The USB-204-OEM board provides eight 12-bit SE analog inputs and offers an analog input range of ±10 V.
Sampling Rate
When scanning continuously to computer memory (hardware-paced mode), this board has a 500 kS/s maximum aggregate sampling rate.
Channel Queue
The channel queue feature lets you configure a list of unique ascending channel configuration for each scan. The channel settings are stored in a channel queue list that is written to local memory on the device.
External Pacer I/O
The USB-204-OEM board provides one external clock input and one clock output for the analog input pacer. You can connect an external clock signal to the external clock input terminal. When using the internal clock, this board outputs the ADC sample clock.
Digital I/O
The USB-204-OEM board provides eight TTL-level digital I/O lines. Each digital channel is software-selectable for input or output. When configured for input, you can use the digital I/O terminals to detect the state of any TTL-level input.
Pull-Up/Pull-Down Configuration
The USB-204-OEM board has a user-configurable internal jumper to configure the digital bits for pull-up or pull-down (default).
Event Counter Input
The board supports one 32-bit TTL-level event counter that accepts inputs up to 1 MHz.
Features
8 SE analog inputs
±10 V input range
12-bit resolution
500 kS/s sample rate
8 digital I/O
One 32-bit counter
16 pin dual-row 0.100” headers (2x8) for ribbon cable connectivity
Board only (no case, CD, or USB cable)
Software
Support for DAQami, easy-to-use advanced data logging application to acquire,
view, and log data
TracerDAQ® software included for acquiring and displaying data and generating signals
Universal Library includes support for Visual Studio® and Visual Studio® .NET, including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET
Universal Library for Android™ includes support and examples for the Android 3.1 platform (API level 12) and later
Example ready-to-run demo apps for Android are available on Google Play™
InstaCal™ software utility for installing, calibrating, and testing
ULx for NI LabVIEW™
DAQFlex open-source software framework
Comprehensive drivers for DASYLab®
Supported Operating Systems: Windows® 8/7/Vista®/XP, 32-bit or 64-bit;
Android 3.1 (API level 12) and later; Linux®, and Mac® platforms
supported by the DAQFlex framework
