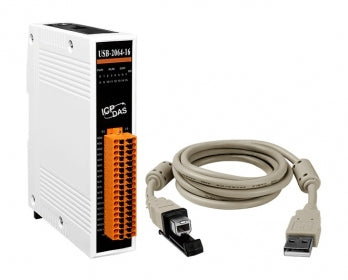

USB-2064-16 USB I/O Module with 16-ch Power Relay


Price:
Sale price£182.00

Description

The USB-2064-16 is a full-speed USB I/O device with 16-ch power relay output module, and provides a power rated relay with 3A maximum current contact rating for switching. In addition, the USB-2064-16 also offers 8 LED indicators that can be used to monitor the status of the relay output. Dual watchdog function that provided with configurable power-on and safe values ensures the device operates continuously, even in harsh environments.

Also provided is an API library and demos with source code for Windows and Linux users to develop their own USB applications with various development tools (VB/C++/C#.NET/VB.NET/LabVIEW). Therefore, the USB-2064-16 is the perfect choice for you to implement I/O expansion via a plug-and-play USB interface.


Features

  • 16-channel power relay output
  • Safety functionality when communication failed
  • Wide operating temperature range
  • USB Bus Powered
  • Plug-and-Play without driver
  • Lockable USB cable

Specifications

CPU Module
Watchdog Timer 1 Hardware watchdog (1.6 second)
1 Software watchdog (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
ESD (IEC 61000-4-2) ±8 kV contact for each terminal
±16 kV air for random point
LED Indicators
Status 3 x Power and Communication
16 x Power Relay
Relay Output
Channels 16 Form A (SPST-NO)
Contact Rating 3 A @ 250 VAC (47 ~ 63 Hz)
3 A @ 30 VDC
Operate Time 10 ms (Max.)
Release Time 5 ms (Max.)
Electrical Endurance 1 x 10^5 ops
Mechanical Endurance 2 x 10^7 ops
Surge Strength Between Open Contact: 1000 VAC (1 Min.)
Between Coil and Contacts: 3000 VAC (1 Min.)
Power on Value Yes, Programmable
Safe Value Yes, Programmable
USB
Specification USB 2.0 Full-Speed (12Mbps)
Power
Consumption 2.3 W (Max.)
Mechanical
Dimensions (mm) 31 x 147 x 126 (W x L x H)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing



Technical

USB-2064-16  USB Power Relay output module datasheet
