Description

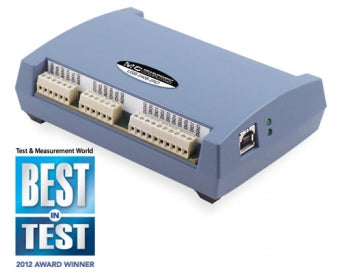

The USB-2408 Series are multifunction DAQ devices designed for highly-accurate voltage or temperature measurements. Each device features up to 16 single-ended (SE)/8 differential (DIFF) analog inputs. Each device includes 8 digital I/O and two counter inputs. The USB-2408-2AO also features two analog outputs. Each device in the series offers 24-bit resolution for ultra-accurate voltage or thermocouple measurements.
Analog Input: Each device includes 16 SE/8 DIFF analog inputs which you can configure for voltage or thermocouple input on a per-channel basis. Eight software-selectable voltage input ranges are provided. You can configure these ranges on a per-channel basis from ±10 V to ±0.078 V. When measuring thermocouples, configure analog inputs in DIFF mode. All devices also include open thermocouple detection to identify improperly working thermocouples.
Sample Rate: The USB-2408 Series can sample analog input channels at up to a 1 kS/s rate.
Digital I/O: Eight digital I/O channels are included with each USB-2408 Series device, and you can read from or write to each individual bit.
Counters: Two 32-bit counters are included with USB-2408 Series devices. The TTL level inputs are capable of read/write rates of up to 500 Hz and an input frequency of up to 1 MHz.
Analog Output: The USB-2408-2AO includes two 16-bit analog outputs. Each output has a ±10 V range.
Features
- Measure thermocouples (TCs) or voltage
- 16 SE/8 DIFF analog inputs
- 24-bit resolution
- Up to 1 kS/s sample rate
- 8 digital I/O
- Two counters
- 2 analog outputs
