Description

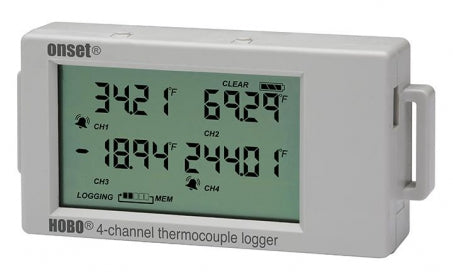

The HOBO UX120 Thermocouple Logger is a four-channel LCD data logger for measuring and recording temperature in a broad range of monitoring applications. The logger makes it easy and convenient to record temperatures over a broad range (-260 to 1820? C) and can accept up to four J, K, T, E, R, S, B, or N type probes.
In addition to accepting four thermocouple probes, the logger features an internal temperature sensor for logging ambient temperatures, further extending the range of application possibilities.
Requires HoboWare software for configuration and data download. For this and other accessories, please refer to the recommended products area below.
IMPORTANT: Hoboware software is now available as a free download that will suffice for most applications. The PRO Version is available for extra analysis tools and use with a Data Shuttle. For the differences between the FREE and PRO versions, please refer to the BHW-Lite (Hoboware Free DVD & USB Cable) entry in the Recommended Products section (below). The download link is also available on the BHW-LITE Page.
Features
- Easy-to-view LCD display confirms logger operation and battery status
- Near real-time readout of current temperatures as well as minimum, maximum, average and standard deviation statistics
- On-screen alarms notify you if temperatures exceed high or low thresholds
- Large memory capacity capable of storing 1.6 million measurements
- Start, stop, and restart pushbuttons
- User upgradeable firmware
Specifications
Thermocouple
| Type | Range | Accuracy | Resolution |
| J | -210° to 760°C (-346° to 1,400°F) | ±0.6°C (±1.08°F) ± thermocouple probe accuracy | 0.03°C (0.06°F) |
| K | -260° to 1,370°C (-436° to 2,498°F) | ±0.7°C (±1.26°F) ± thermocouple probe accuracy | 0.04°C (0.07°F) |
| T | -260° to 400°C (-436° to 752°F) | ±0.6°C (±1.08°F) ± thermocouple probe accuracy | 0.02°C (0.03°F) |
| E | -260° to 950°C (-436° to 1,742°F) | ±0.6°C (±1.08°F) ± thermocouple probe accuracy | 0.03°C at (0.05°F) |
| R | -50° to 1,550°C (-58° to 2,822°F) | ±2.2°C (±3.96°F) ± thermocouple probe accuracy | 0.08°C (0.15°F) |
| S | -50° to 1,720°C (-58° to 3,128°F) | ±2.2°C (±3.96°F) ± thermocouple probe accuracy | 0.08°C (0.15°F) |
| B | 550° to 1,820°C (1,022° to 3,308°F) | ±2.5°C (±4.5°F) ± thermocouple probe accuracy | 0.1°C (0.18F) |
| N | -260° to 1,300°C (-436° to 2,372°F) | ±1.0°C (±1.8°F) ± thermocouple probe accuracy | 0.06°C (0.11°F) |
Internal 10K Thermistor (Temperature):
Ranage: Logging: -20° to 70°C (-4° to 158°F)
Acuracy: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
Resolution: 0.024°C at 25°C (0.04°F at 77°F); see Plot A
Drift: <0.1°C (0.18°F) per year
Logger
Logger Operating Range:
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing); logger accuracy from 0° to 50°C (32° to 122°F)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
Logging Rate: 1 second to 18 hours, 12 minutes, 15 seconds
Logging Modes: Normal, Burst or Statistics
Memory Modes: Wrap when Full or Stop when Full
Start Modes: Immediately, Push Button, Date & Time or Next Interval
Stop Modes: When Memory Full, Push Button, or Date & Time
Restart Mode: Push Button
Time Accuracy: ±1 minute per month at 25°C (77°F), see Plot B
Battery Life: 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater
Battery Type: Two AAA 1.5V alkaline batteries, user replaceable
Memory: 4 MB (1.6 million measurements, maximum)
Download Type: USB 2.0 interface
Full Memory Download Time: Approximately 1.5 minutes
LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Size: 10.8 x 5.41 x 2.54 cm (4.25 x 2.13 x 1 in.)
Weight: 30 g (1.06 oz)
Environmental Rating: IP50
